By dismantling we learned to appreciate iFixit, iPhone 5 is by far the most likely to maintain the iPhone, so we do not hide, openly with iPhone 5, because even if the screen broke, we also have a way to replace . We need to remind everyone that, iPhone 5 is still under warranty, if the screen is broken, you can get your local Apple retail store or authorized shops, and now Apple has the spot for you to replace the screen. But unfortunately, the screen assembly for the iPhone 5 is still not available, but added maintenance manuals have emerged, we take a look in the end how easily iPhone scrren repairs.
Tools / materials
To replace the screen and digitizer
Sucker
Plum-shaped screwdriver
Standard screwdriver
Blade or any flat surface of metal
Method /
1
Before disassemble the power off before iPhone 5
2
.png)
Unscrew the dock next to the interface of two plum-shaped screw
A different method of removing the degree of damage according to the screen. If the screen is still relatively intact, we can dismantle the screen with suction cups. The method is: the suction cup firmly attached to the position above the Home key, gently lift up, and the other hand against the fuselage. At first you do not need to suck out the entire screen because the top there are some wires connected to the motherboard.
.png)
.png)
If the screen is the degree of fragmentation is very serious, we would use a blade. But we must be patient and gentle, or else you will not only damage the iPhone, there might injure yourself. The method is: the left and right from the Home key to start position, the blade extends into the space between the screen glass and frame, sliding slowly until you are sure enough a knife inserted into the skid, you then pry the knife to gently pry the end of the screen the same is not necessary to completely pry out.
.png)
Fourth, the opening screen you will find a silver shield, beneath the screen and digitizer wire connectors, we are using a # 00 Phillips screwdriver to unscrew these three screws.
.png)
After the protective cover open, carefully screen connected to the motherboard of the three wires to pry open so that the entire screen and digitizer liberation from the body.
.png)
.png)

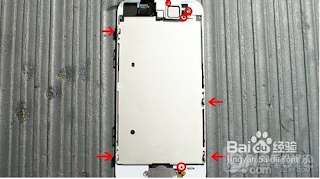

The following screen dismantle protective cover protective cover earpiece and handset components. Use is still # 00 Phillips screwdriver. After unscrew the screws with a pry tool to pry open the protective cover, and then the receiver assembly also ripped out, put aside, will be assembled when I remember back together.
.png)
.png)
Split front camera and sensor cable. They are on the left earpiece components, we need to remove it. Carefully pry up these parts, pay attention to the following wire front camera. Noise-canceling microphone is pressed to the screen component, it can be ejected. The remaining wire fixed with an adhesive, carefully peel off the wires from the screen assembly.
Apple iPhone5 screen replacement tutorial
.png)
.png)
Demolition Home key. With a # 00 Phillips screwdriver to unscrew the screws on both sides of the Home key, starting left guard lifted the Home key, but not completely split out, because right there is a connector assembly is bonded to the screen, we need to use a knife to pry release them. Next to dismantle Home keys themselves. Is as simple as pushing a hand from the front, Home key to fall off naturally.
.png)
.png)
Well, now we need to just ripped out of the small parts are transferred to the new screen component, followed by Home key, Home key guard, noise canceling microphone, front camera, sensor wires, handset components, protective cover and screen handset shield, as no less.
.png)
.png)
We will be the new iPhone 5 screen repair attached to it, it had been waiting a long time. Steps are: the three wires to connect back to the screen board, install wire guard, screw the three screws remember the last Align the screen border, is closed.
.png)
.png)
Finally, the Home key on both sides of the screw can be changed, Iphone screen repair procedure is end.
.png)
.png)
